Product Features
-
Composed of multi-layer (>5) nano-fiber membranes with up to 99% contaminant removal efficiency
-
High-density pleated design for maximum filtration area, high flow rate, long service life, and large dirt-holding capacity
-

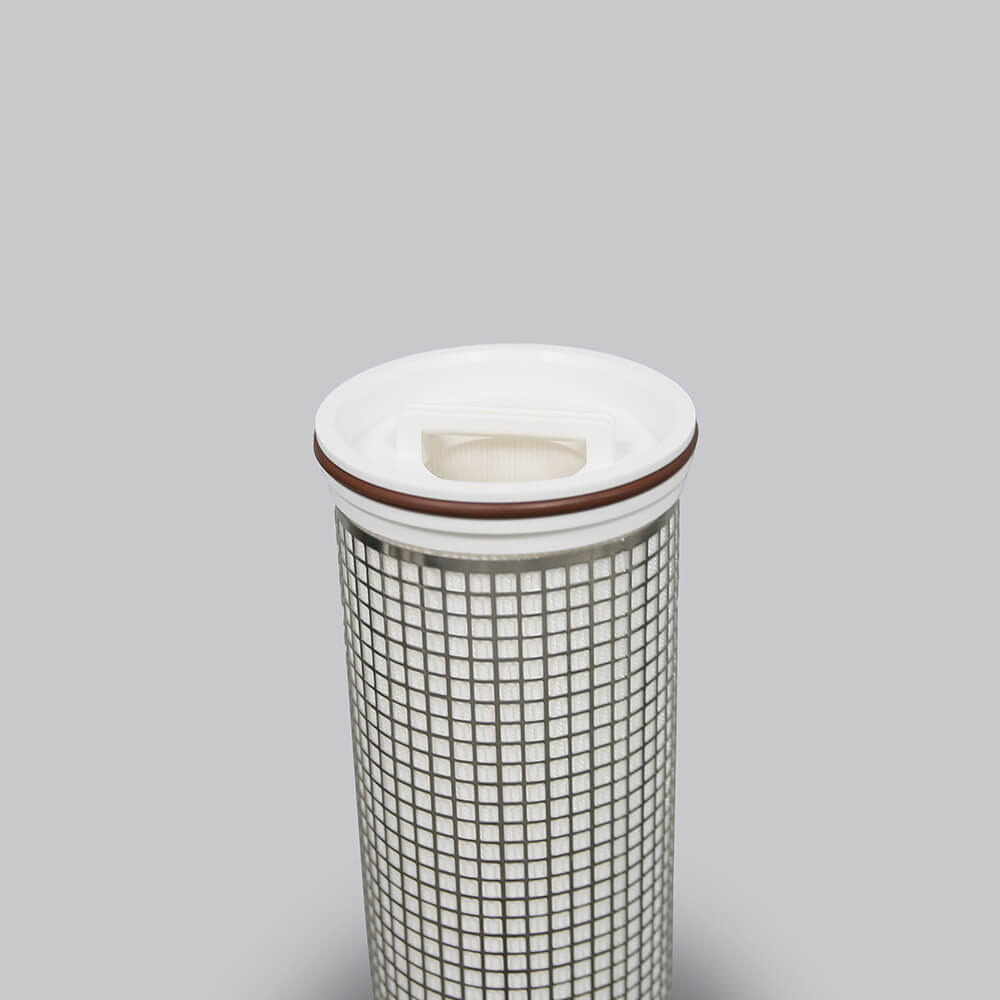

Optimized integrated stainless steel external support for enhanced strength and pressure resistance
-
Maximum operating temperature up to 145 °C
-
Wide micron rating range (0.5–100 μm) to meet diverse filtration requirements
-
Available in 20″, 40″, and 60″ lengths to suit different system designs
-
Easy cartridge replacement, saving labor and maintenance time
Operating Characteristics
| Parameter | Value |
|---|---|
| Maximum Operating Temperature | 120 °C |
| Maximum Differential Pressure | 0.38 MPa @ 20 °C |
| Recommended Change-out Pressure | 0.15 MPa @ 20 °C |
Typical Applications
-
Power plant condensate (steam network drainage)
-
Chemical industry condensate
-
Other high-temperature condensate water filtration
Technical Specifications
| Size (Diameter × Length) | Design Flow Rate (m³/h) | Max. Flow Rate (m³/h) | Filtration Area (m²) |
|---|---|---|---|
| 6″ × 20″ | 15 | 40 | 3.3 |
| 6″ × 40″ | 30 | 80 | 6.5 |
| 6″ × 60″ | 45 | 120 | 8.5 |
Material Construction
Material Construction
| Component | LFPH |
|---|---|
| Filter Media | Modified PET |
| Support / Drainage Layer | Modified PET |
| End Cap | Glass Fiber Reinforced PP |
| Outer Protective Net | PET |
