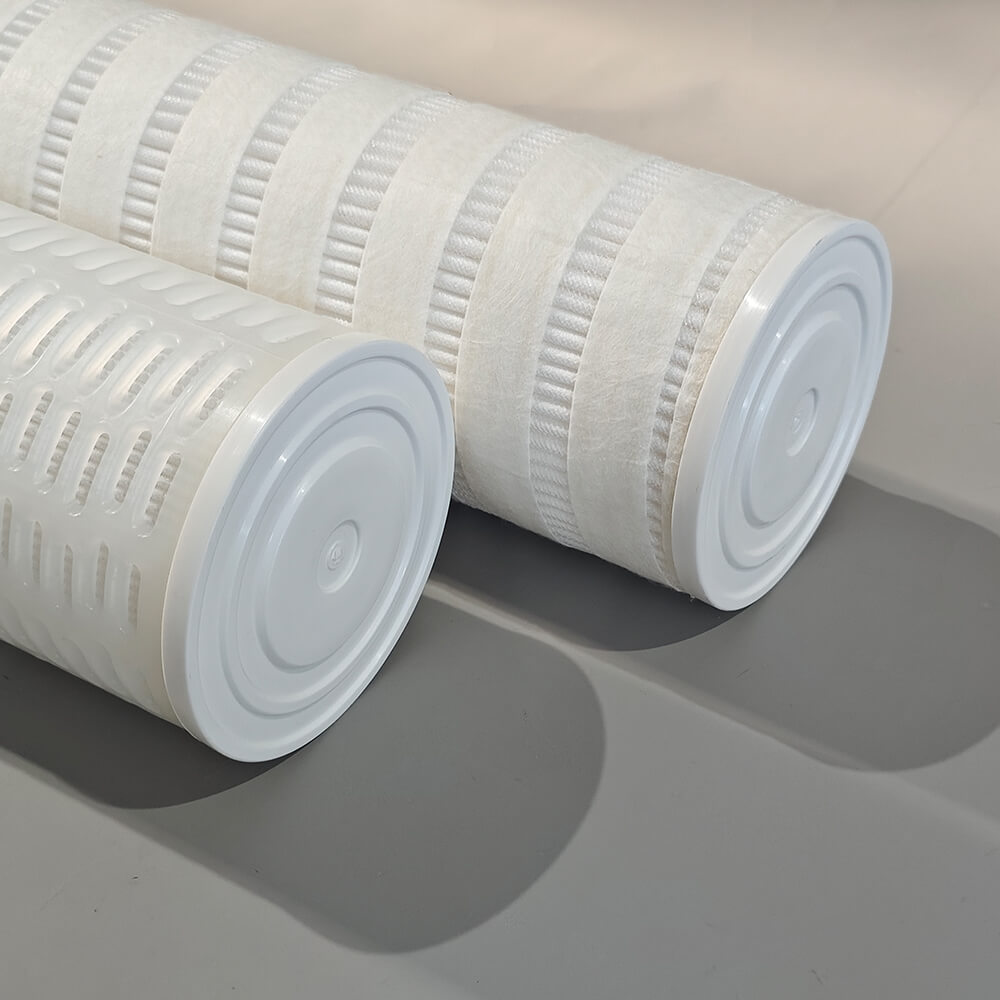

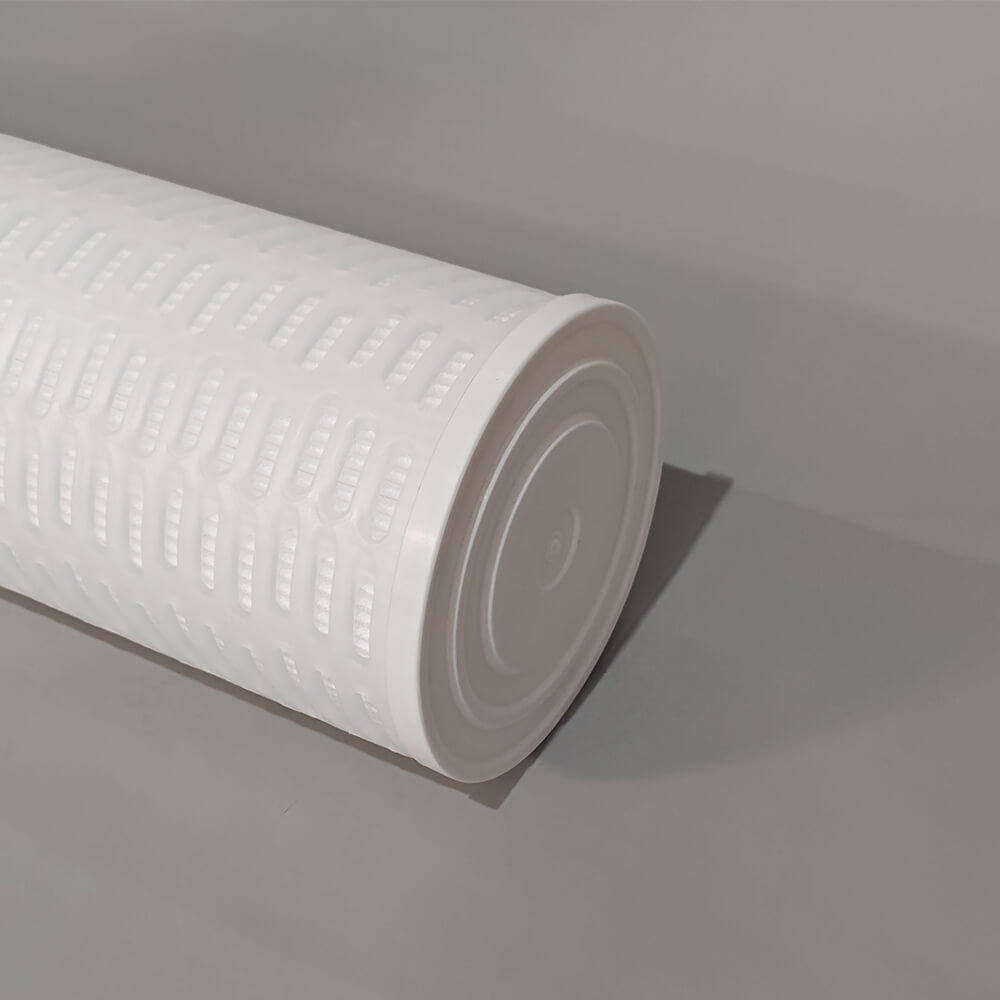

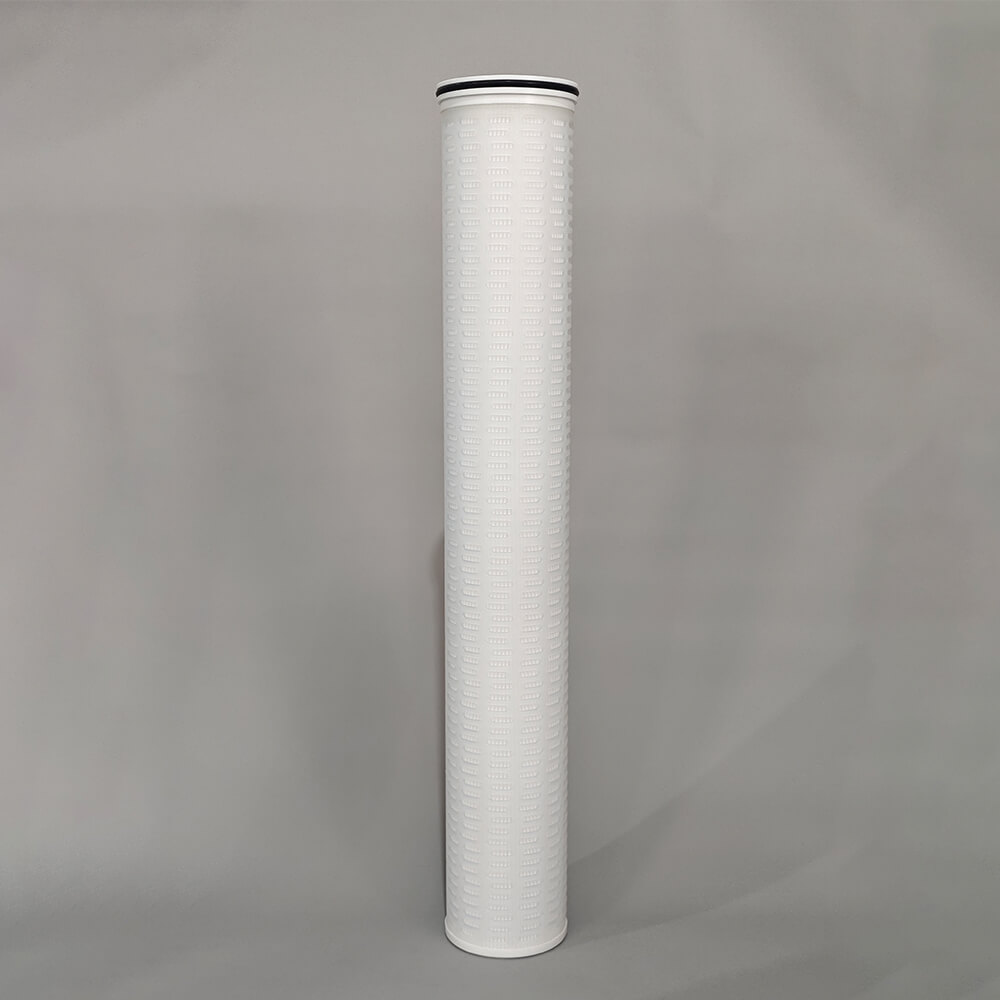

XHP All Polyester High Flow Filter Cartridge

The XIORA XHP Series High-Flow Polyester Pleated Filter Cartridges use deep-layer fine polyester (PES) fiber membranes as the filtration medium, offering excellent temperature and pressure resistance. These cartridges can operate continuously at 120°C for up to a week and nearly two weeks at 90°C. Featuring a 6″ (152 mm) diameter, each cartridge provides a maximum filtration area of over 8 m² and a flow rate up to 60 m³/h.

Constructed with a polyester outer support and single-open-end design, the cartridges are engineered for inside-to-outside liquid flow, ensuring all contaminants are captured within the filter element. Their large diameter and high efficiency reduce the number of cartridges and filter housing size, significantly lowering equipment investment and labor costs while simplifying operation and maintenance. Suitable for a wide range of industrial applications.


WhatsApp Message E-Mail

Product Features

  • Multi-layer nanofiber membranes provide over 99% filtration efficiency while offering larger dirt-holding capacity.

  • High-density pleated design combines ultra-large filtration area, high flow rate, long service life, and high contaminant holding capacity.

  • Optimized integrated polyester outer support ensures higher strength and improved pressure resistance.

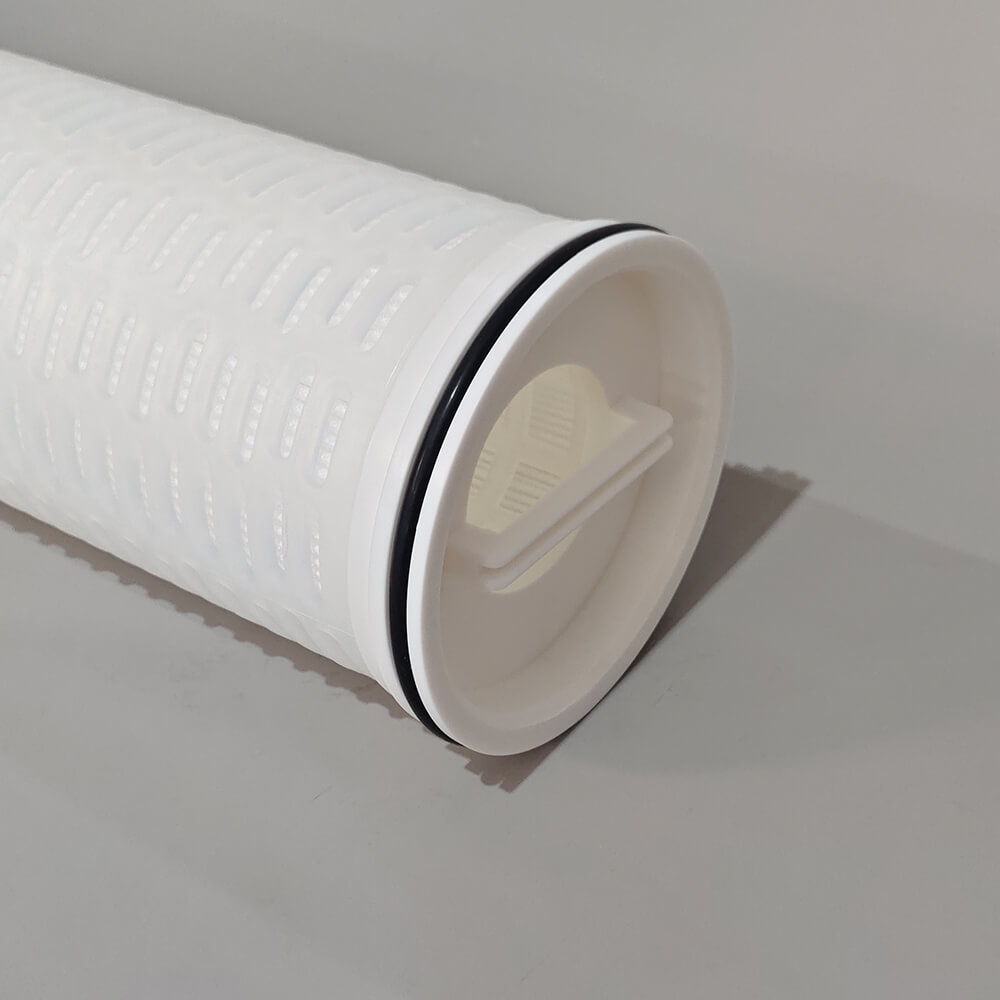

  • Unique sealing ring design provides excellent sealing performance.

  • Glass fiber reinforced end caps enhance the overall structural strength of the cartridge.

  • Wide micron range from 0.5 μm to 100 μm to meet various filtration requirements.

  • Available in multiple lengths: 20″, 40″, and 60″ to suit different system needs.

  • Easy and quick cartridge replacement, saving significant labor and time.

    Technical Specifications

    Size (Diameter × Length) Design Flow Rate (m³/h) Max. Flow Rate (m³/h) Filtration Area (m²)
    6″ × 20″ 15 40 3.3
    6″ × 40″ 30 80 6.5
    6″ × 60″ 45 110 8.5

    Material Construction

    Model Filter Media Support / Drainage Layer End Cap Outer Protective Net
    PBT Polyester Polyester Polyester Polyester

    Operating Characteristics

    Parameter Value
    Maximum Operating Temperature 120°C
    Maximum Differential Pressure 0.38 MPa @ 20°C
    Recommended Change-out Pressure 0.15 MPa @ 20°C

    Typical Applications

    • Chemical condensate water

    • Power plant heat network drain water

    • Hydrogen peroxide production facilities

    • High-temperature liquid filtration

    • Precise filtration of aromatic hydrocarbon solvents such as benzene and toluene
