Product Features
-
Multi-layer graded filtration (5–10 layers): Delivers ultra-high filtration efficiency while providing increased dirt-holding capacity.
-
Robust structural options: Available in integrated or reinforced skeleton designs, customizable to optimize strength and pressure resistance.
-
Wide micron rating range (0.5–100 μm): Meets diverse filtration requirements for different applications.
-
Flexible length specifications: Standard options include 20″, 30″, 40″, and 60″.
-
Customizable models: Full range of specifications available to suit various industrial and commercial needs.
Application
-
Power plant make-up water, condensate water, and stator cooling water filtration
-
Reverse osmosis (RO) pre-filtration
-
Seawater desalination pre-treatment
-
Deionized water pre-filtration
-
Petrochemical and process water filtration
Material Construction
| Component | PP Version | GF Version |
|---|---|---|
| Filter Media | Depth-pleated Polypropylene | Resin-bonded Glass Fiber / Polyester |
| Support / Drainage Layer | Polypropylene | Polyester |

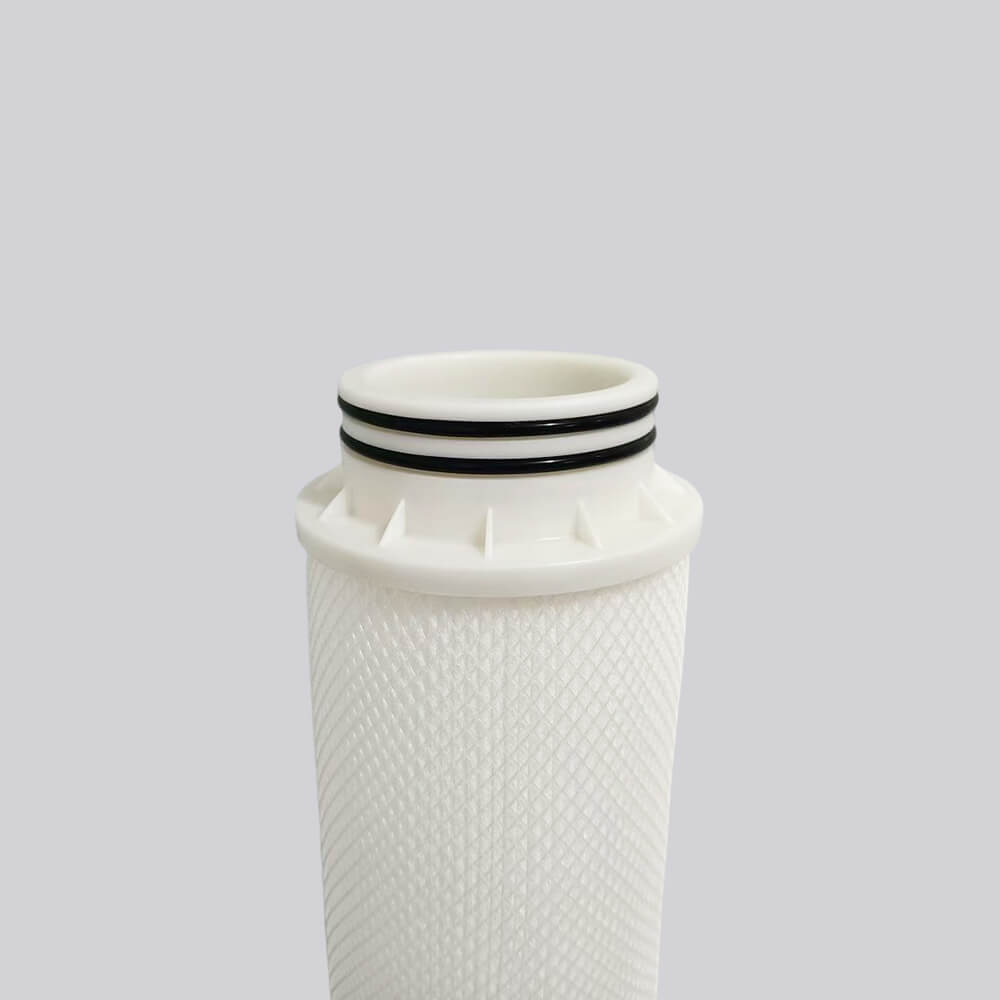

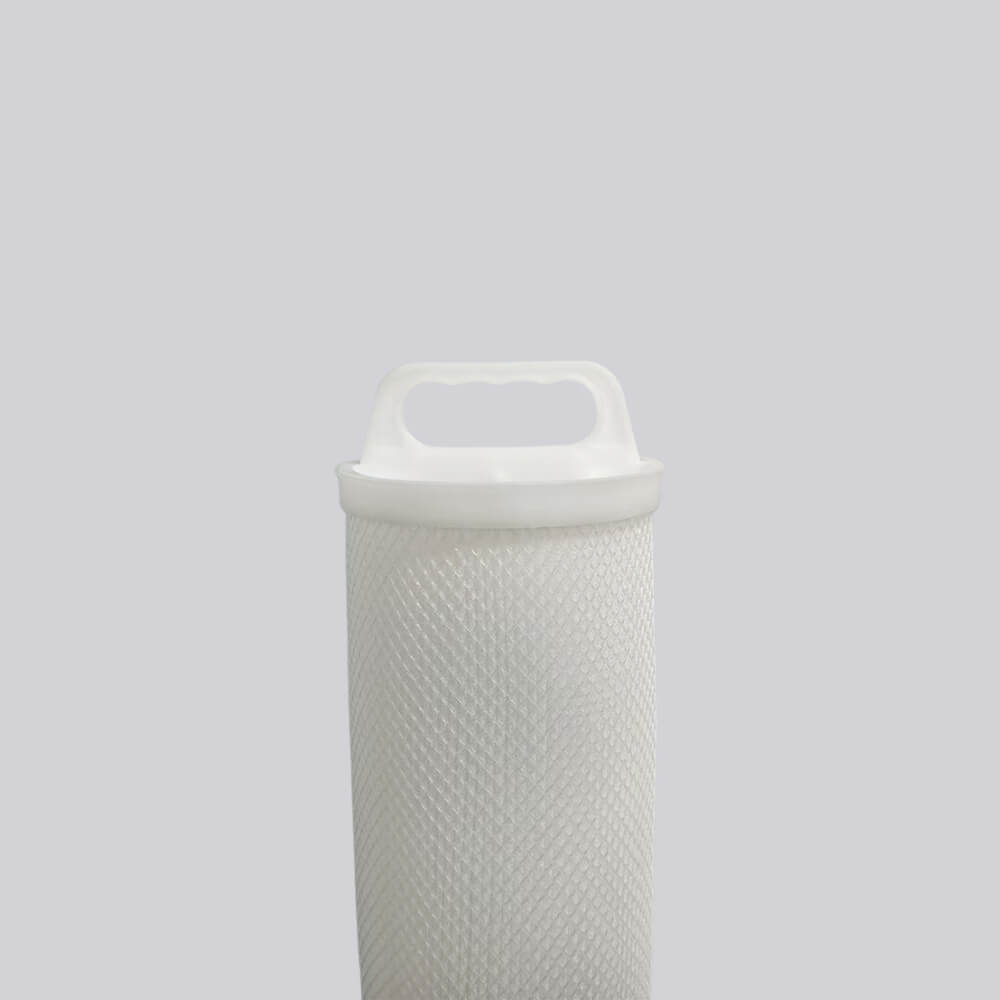

| End Cap | Glass Fiber Reinforced Polypropylene | Glass Fiber Reinforced Polypropylene |
| Outer Protective Net | Polypropylene | Polyester |
Operating Characteristics
| Parameter | Value |
|---|---|
| Maximum Operating Temperature | 80 °C |
| Maximum Differential Pressure | 0.38 MPa @ 20 °C |
| Recommended Change-out Pressure | 0.15 MPa @ 20 °C |
Technical Specifications
| Size (Diameter × Length) | Design Flow Rate (m³/h) | Max. Flow Rate (m³/h) | Filtration Area (m²) |
|---|---|---|---|
| 6.5″ × 20″ | 15 | 40 | 3.3 |
| 6.5″ × 40″ | 30 | 80 | 6.5 |
| 6.5″ × 60″ | 45 | 110 | 8.5 |
