Product Details

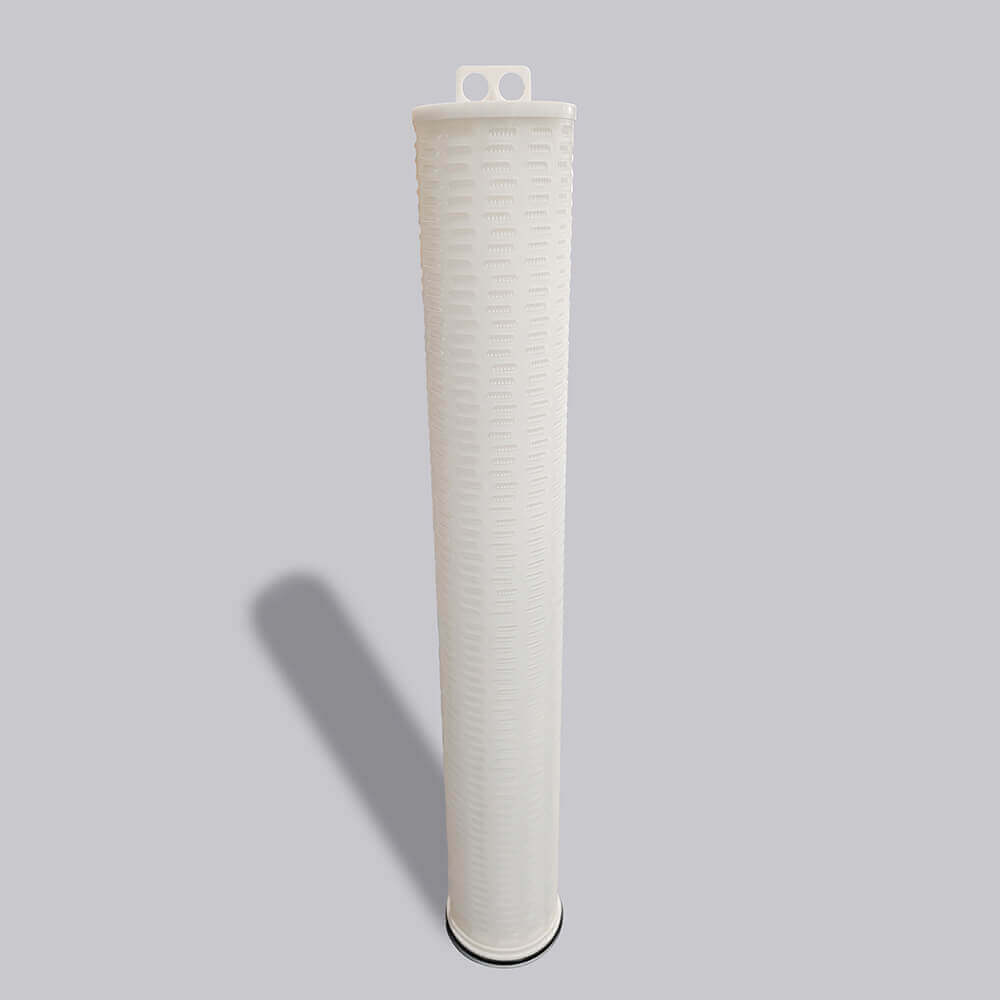

- XIORA XHKP Series High Flow Filter Cartridges are engineered with deep-layer fine polypropylene fiber membranes as the filtration medium, ensuring excellent contaminant removal and long service life. Featuring a 6-inch large diameter and single open-end design, each cartridge delivers ultra-high flow capacity while minimizing the number of cartridges required in a system.
- Equipped with convenient pull handles on both ends, XHKP cartridges can be easily installed and removed from housings, reducing downtime and maintenance effort. This design enables significant savings in equipment investment, labor, and operational costs by optimizing system size and efficiency.
- Available in a wide range of micron ratings and construction options, the XHKP Series offers tailored solutions to meet diverse process requirements across multiple industries and applications. With their high dirt-holding capacity, robust design, and ease of handling, XIORA XHKP High Flow Filter Cartridges provide a reliable and cost-effective choice for demanding filtration environments.
Application
-
Power plant make-up water and condensate water filtration
-
Stator cooling water filtration
-
Reverse osmosis (RO) system pre-treatment
-
Seawater desalination pre-treatment
-
Deionized (DI) water pre-filtration
-
Process water filtration in petroleum, chemical, and other industrial applications
Product Features
-

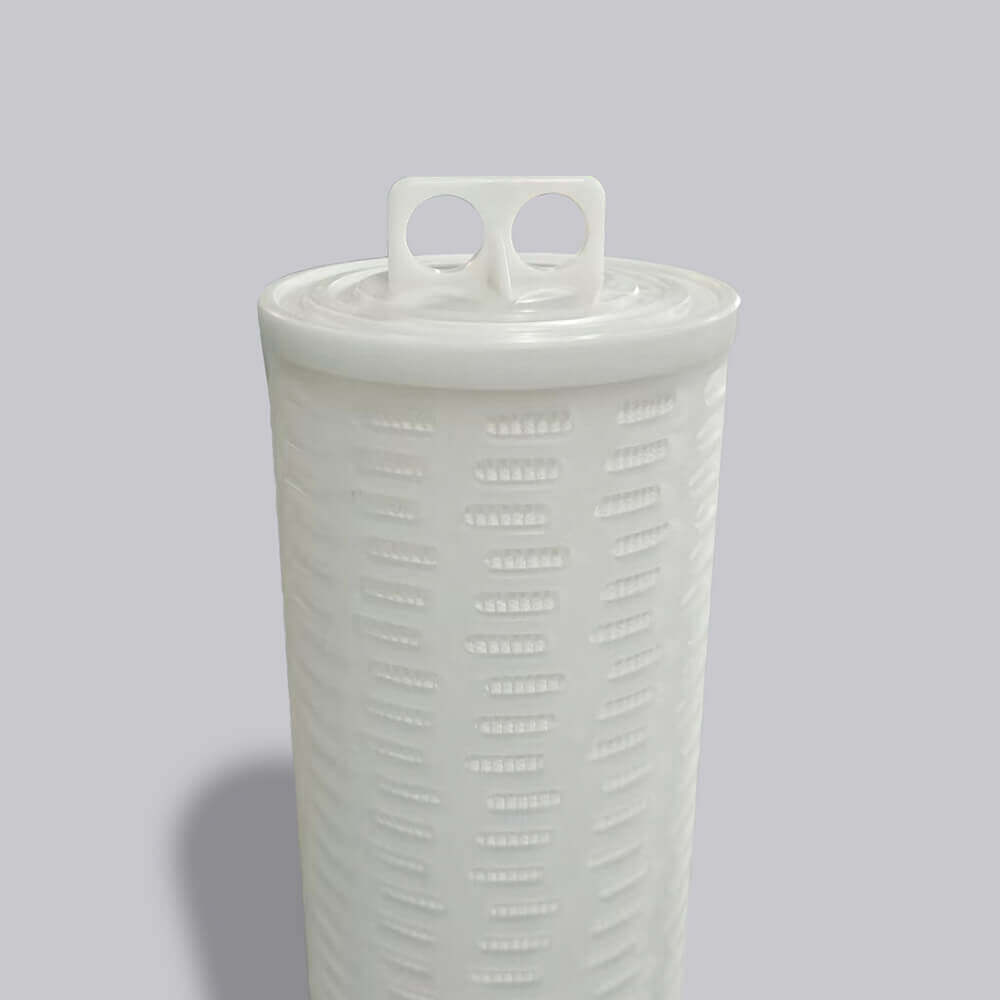

Dual-handle design: Convenient cartridge removal and installation from both ends of the housing
-

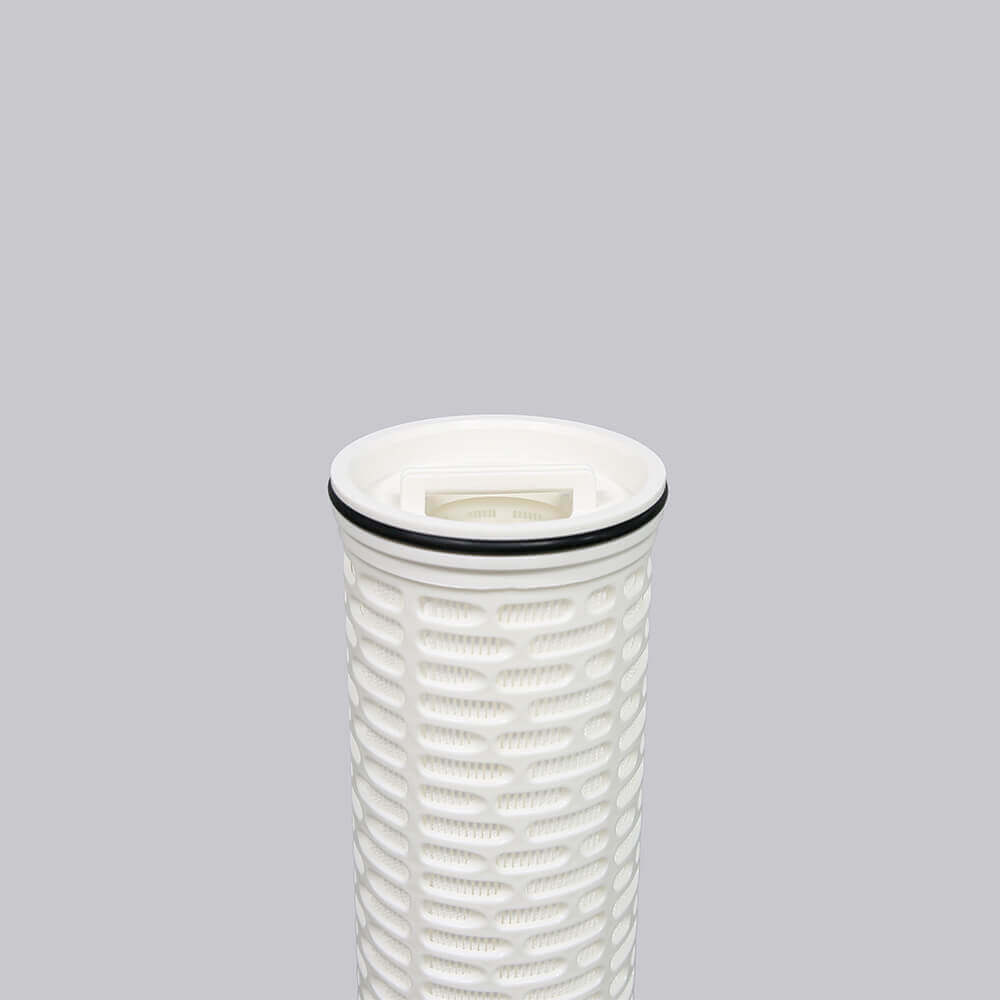

Multi-layer graded filtration (5–10 layers): Provides superior filtration efficiency with larger dirt-holding capacity
-
Robust structural options: Available in both integrated skeleton and reinforced skeleton designs, customizable to enhance strength and pressure resistance
-
Wide micron rating range: From 0.5 μm to 100 μm, meeting diverse filtration levels and process requirements
-
Flexible length specifications: Standard sizes include 20″, 30″, 40″, and 60″, with full customization available upon request
Technical Specifications
| Size (Diameter × Length) | Design Flow Rate (m³/h) | Maximum Flow Rate (m³/h) | Filtration Area (m²) |
|---|---|---|---|
| 6″ × 20″ | 15 | 40 | 3.3 |
| 6″ × 40″ | 30 | 80 | 6.5 |
| 6″ × 60″ | 45 | 110 | 8.5 |
Material Construction
| Model | Filter Media | Support/Drainage Layer | End Caps | Outer Netting |
|---|---|---|---|---|
| PP | Deep pleated polypropylene | Polypropylene | Glass fiber reinforced PP | Polypropylene |
| GF | Resin-bonded fiberglass/polyester | Polyester | Glass fiber reinforced PP | Polyester |
Operating Characteristics
| Item | Value |
|---|---|
| Maximum Operating Temperature | 80°C |
| Maximum Differential Pressure | 0.38 MPa @ 20°C |
| Recommended Change-out Pressure | 0.15 MPa @ 20°C |
Ordering Information – XIORA XHKP Series High Flow Filter Cartridges
| Length | Filter Media | Micron Rating | O-ring | Outer Structure |
|---|---|---|---|---|
| 20 = 20″ | PP (Polypropylene) | 0010 = 1 μm | E = EPDM | S = Skeleton |
| 40 = 40″ | GF (Fiberglass) | 0030 = 3 μm | S = Silicone | B = Strap |
| 60 = 60″ | — | 0050 = 5 μm | F = FKM (Viton) | — |
| 0100 = 10 μm | N = NBR | — | ||
| 0150 = 15 μm | — | |||
| 0250 = 25 μm | — | |||
| 0400 = 40 μm | — | |||
| 0700 = 70 μm | — |
