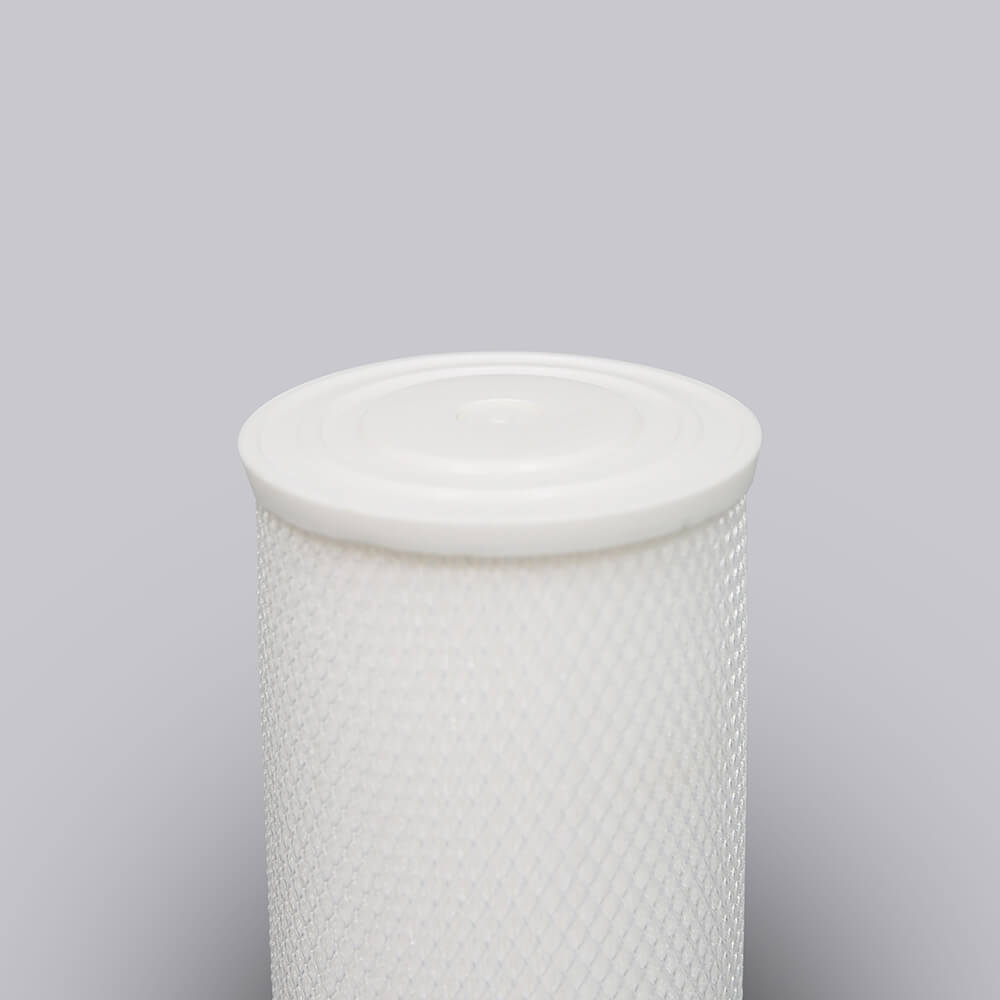

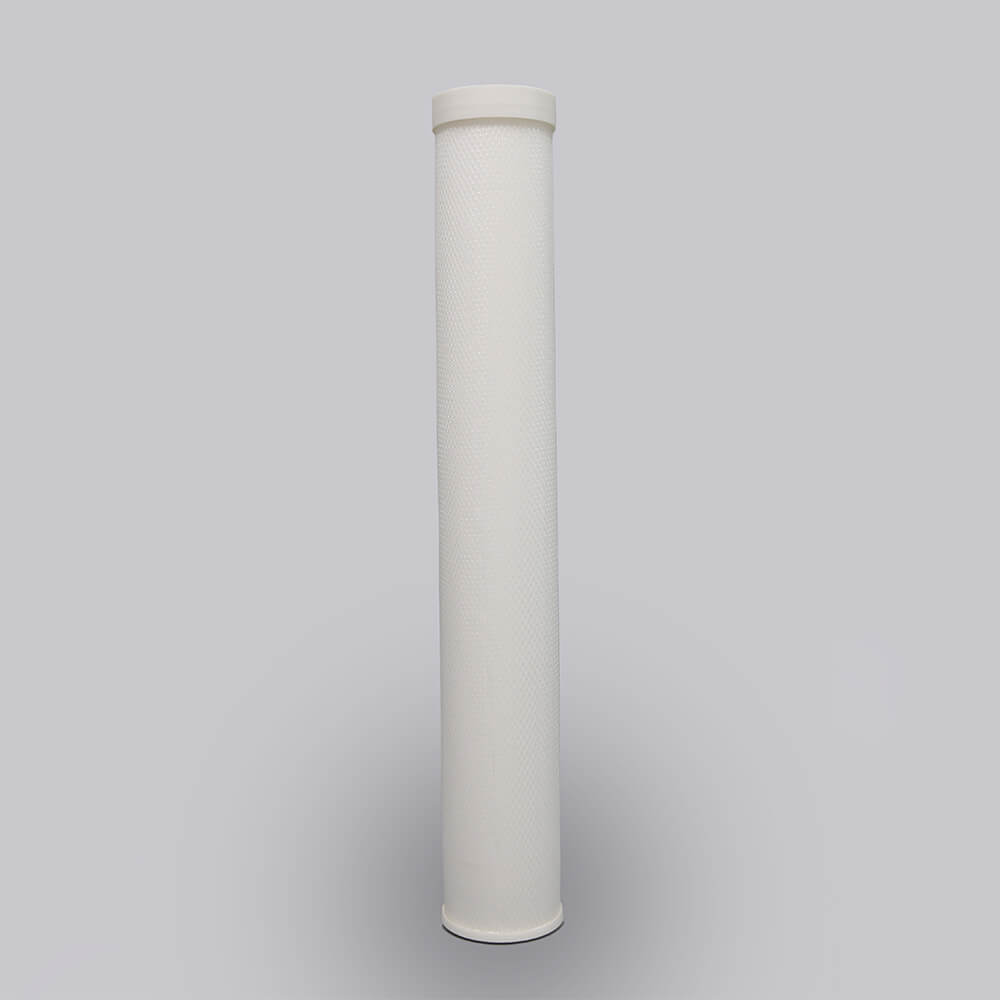

XHD High Flow Filter Cartridge

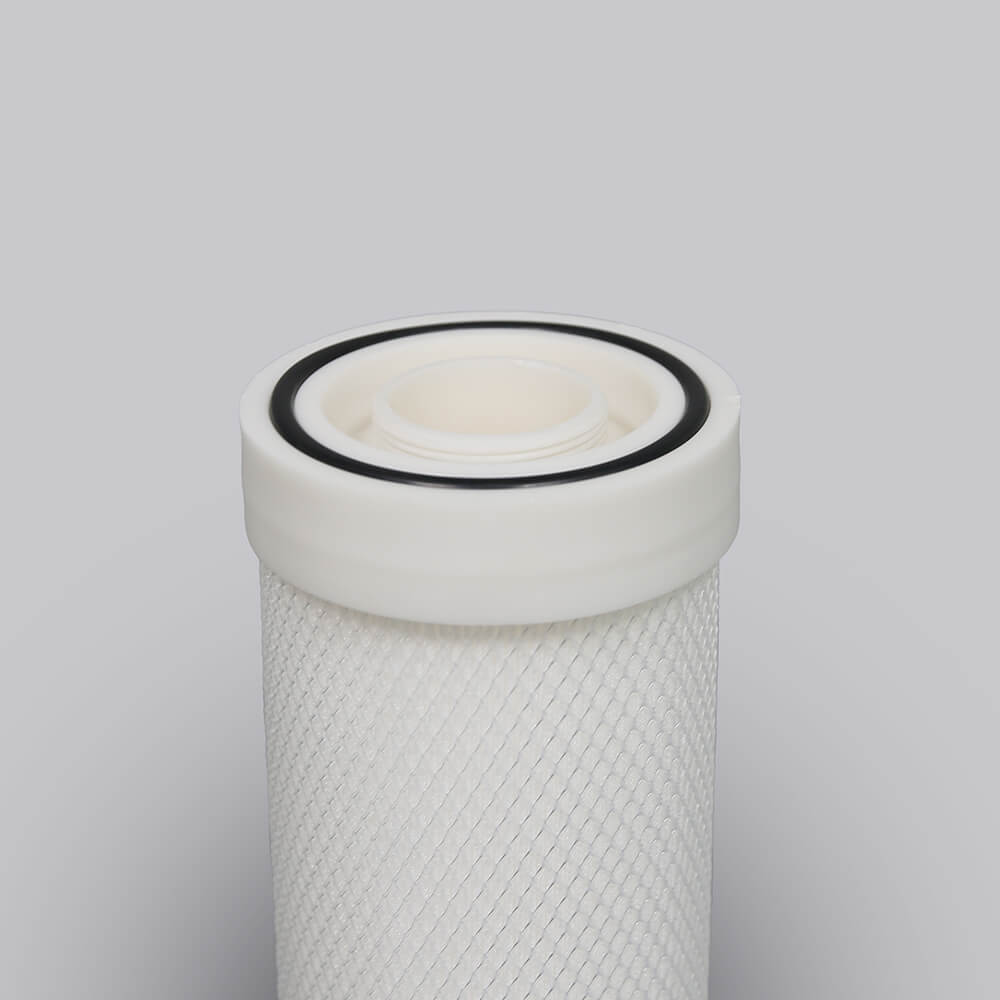

The XIORA XHD Series High Flow Pleated Filter Cartridges feature deep-layer fine membrane materials with a multi-layer graded pore design, providing higher dirt-holding capacity and contaminant retention. Designed with a single open end and outside-to-inside flow, these cartridges ensure efficient filtration across various applications.

The large 6.7″ (170 mm) diameter increases effective filtration area and dirt-holding capacity, reducing the number of cartridges required and lowering overall operational costs. Multiple models and specifications are available to meet diverse industrial and commercial filtration needs.

WhatsApp Message E-Mail

Product Features

Versatile specifications: Multiple materials and micron ratings available to meet diverse filtration needs.
Chemical compatibility: Made from 100% polypropylene (PP) for excellent chemical resistance.
High efficiency & low pressure drop: Delivers superior dirt-holding capacity while maintaining low operating resistance.

Application

Power plant make-up water, condensate water, and stator cooling water filtration
Reverse osmosis (RO) pre-filtration
Seawater desalination pre-treatment
Deionized water pre-filtration
Petrochemical and process water filtration

Material & Construction

Component	Material
Filter Media	Polypropylene (PP)
Support / Drainage Layer	Polypropylene (PP)
Core / Outer Housing	Polypropylene (PP)
O-Ring / Seal	EPDM, NBR, or other options

Operating Conditions

Parameter	Value
Maximum Operating Temperature	80 °C
Maximum Differential Pressure	0.34 MPa
Design Flow Rate	70 m³/h (typical 30–50 m³/h for 40″ length)

Dimensions

Parameter	Value
Outer Diameter	6.7″ (170 mm)
Length	40″ (standard, customizable)
