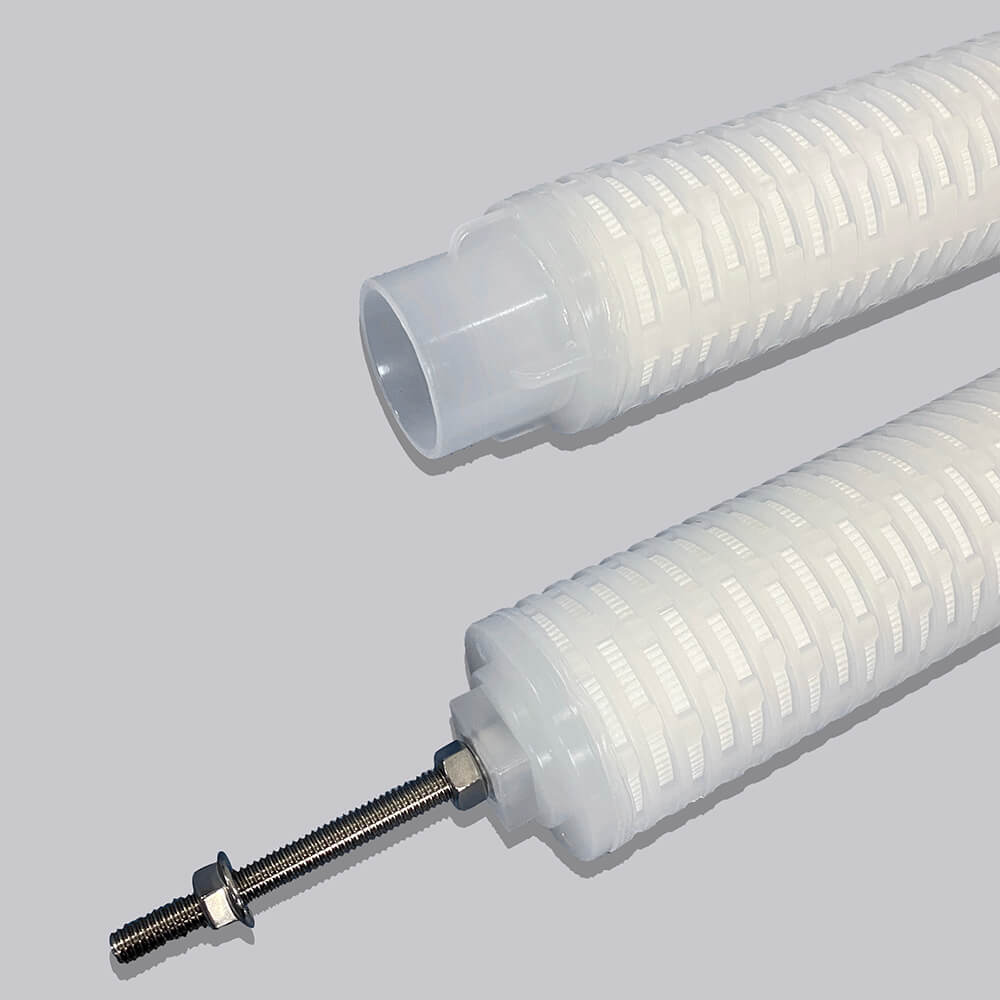

The XF Reverse Washable Pleated Filter Element is manufactured using imported absolute-rated filtration membranes, offering a large filtration area, low pressure drop, high flow capacity, and excellent reusability through repeated backwashing. It effectively removes suspended impurities such as iron and copper oxides from condensate water, preventing contamination of expensive resins and extending the operating cycle of fine treatment systems.
Its unique structural design, reinforced core, and durable construction ensure long service life, high mechanical strength, and stable performance even under frequent backwashing operations.
Operating Characteristics
| Item | Specification |
|---|---|
| Maximum Operating Temperature | 80 °C |
| Maximum Differential Pressure | 0.4 MPa @ 21 °C 0.24 MPa @ 70 °C |
| Recommended Operating Flow Rate | 3.5–4.5 m³/h (70″) |
| Recommended Backwash Flow Rate | 0.45–0.68 m³/h |
| Recommended Backwash Air Flow | 3.4–5 m³/h |
Product Features
-
Reverse-Washable Design
Special support structure enables 300+ backwash cycles without performance degradation. -
High-Strength Reinforced Core
Enhanced mechanical structure prevents cracking at the interface and ensures stability during pressure fluctuations. -
Two-Piece Welded Construction
Significantly fewer welds compared to typical domestic products, resulting in higher integrated stability and reliability. -
Large Filtration Area & High Dirt-Holding Capacity
Optimized pleated design provides high flow rates with low pressure drop and extended service life. -
Advanced Nanofiber Membrane
Offers outstanding retention efficiency and exceptionally high contamination-holding capacity. -
Multiple End Cap & Connection Options
Allows perfect compatibility with existing filtration systems.
Materials of Construction
| Component | Material |
|---|---|
| Filter Media | Polypropylene |
| Support / Drainage Layer | Polypropylene |
| End Caps | Polypropylene |
Typical Applications
-
Condensate Polishing – Pre-filtration
Ideal for removing iron oxide, copper oxide, and other suspended solids prior to fine condensate water treatment systems.
