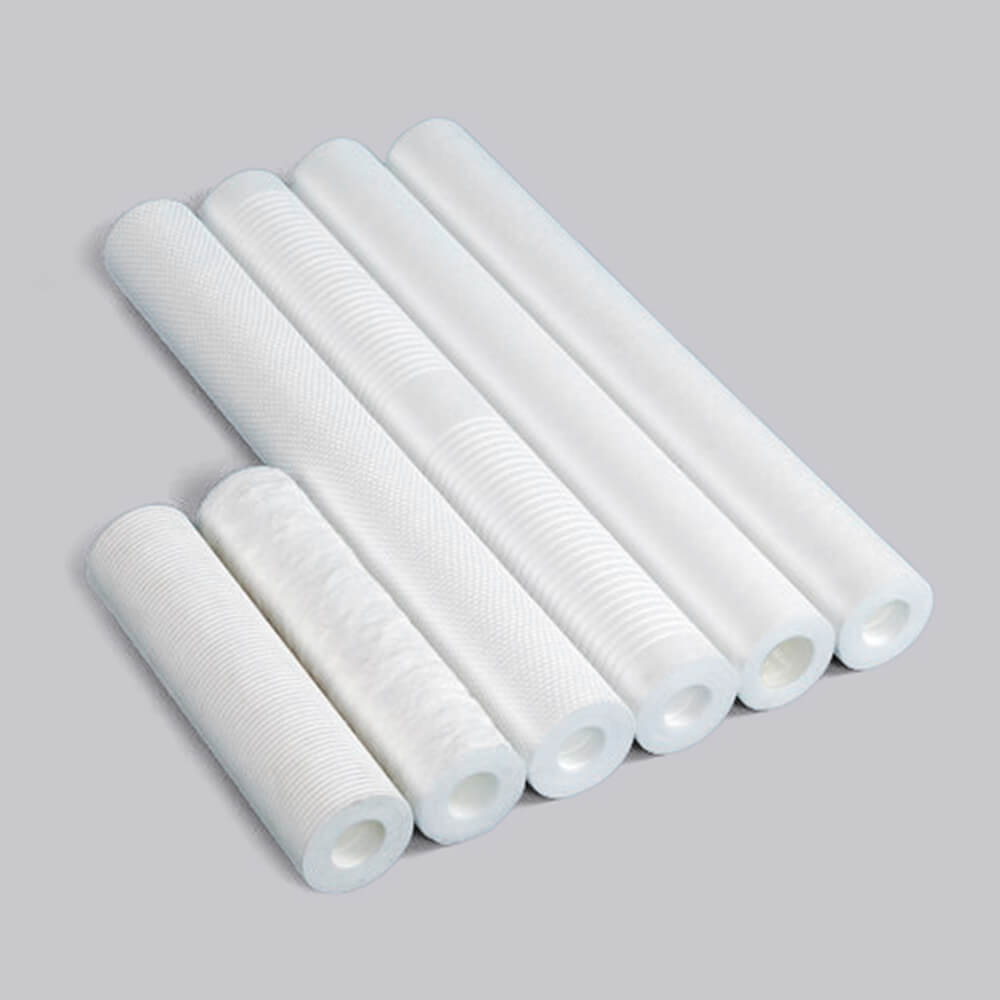

XF Polypropylene Melt-Blown Filter Cartridge
The XF Polypropylene Melt-Blown Filter Cartridge is manufactured using the latest melt-blown technology, giving the cartridge exceptional rigidity and mechanical strength. Its compressive resistance is 2–3 times higher than that of standard melt-blown cartridges, making it suitable for filtering liquids with higher viscosity and solid content.
The melt-blown process creates a deep, multi-layer structure that provides high dirt-holding capacity and excellent particle retention while maintaining low resistance. This makes the cartridge ideal for applications involving particulate-laden liquids, ensuring efficient filtration with extended service life.
Product Features
-
Three-Layer Depth Filtration Structure
Provides high dirt-holding capacity and long service life. -
Textured (Orange Peel) Surface Design
Increases filtration area and structural strength. -
Versatile Connection Options
Compatible with various fittings for flexible installation. -
High Mechanical Strength
Withstands higher differential pressures than standard melt-blown cartridges. -
Efficient Particle Filtration
Excellent removal of particulate matter with low pressure drop.
Materials of Construction
| Component | Material |
|---|---|
| Filter Media | Polypropylene |
| Core / End Caps | Polypropylene |
Technical Specifications
| Item | Specification |
|---|---|
| Maximum Operating Temperature | 80 °C |
| Maximum Differential Pressure | 0.4 MPa @ 21 °C 0.24 MPa @ 80 °C |
Filter Dimensions
| Parameter | Specification |
|---|---|
| Outer Diameter | 63 mm |
| Inner Diameter | 28 mm / 30 mm |
| Length | 10″–60″ |
| Weight | 110 g / customized |
